Diagnostic and Testing

Showing 1–12 of 13 results

  • Window Tint Meter

    $355.05

    Part No: 63

    Window Tint Meter

    $355.05

    FEATURES

    • Measures the total amount of Visual Light Transmission (VLT) through a window treated with aftermarket window tint film.
    • Will test windows that roll down or are fixed, this is critical for inspections to test windshield/windscreen or any other fixed on vehicle.
    • Two piece design allows users to check all windows on vehicles, including all fixed windows. This is required according to most state laws.
    • Internal light source measures in all lighting conditions.
    • Specs:
      Display: LCD
      Accuracy: +/- 2%
      Wavelength: 550 Nanometers
      Measurement Range: 0 to 100% Light Transmission
      Sample Thickness: Less than .4”
      Sample Size:2 ”x 2” minimum
      Time of Testing: Maximum of 4 Seconds
      Effects From Stray Light: Not Effected by Stray Light
      Lamp Life: 12 Years
      Operating conditions: 0-120 F/0-99% Relative Humidity
      Power Source: 4 x 1.5v AAA Batteries (Not included)
    Quick View
  • Deutsch Terminal Service Set, 11 Piece

    $283.99

    Part No: 55000

    Deutsch Terminal Service Set, 11 Piece

    $283.99

    Modern electrical systems have advanced far beyond basic tools and simple connectors. They require unique tools to do the job right. This set is complete with the tools needed when dealing Deutsch, Weather Pack, and other applications.

    • This set contains the tools needed to crimp and release Deutsch terminals, Weather Pack and other types of open and closed barrel terminals found in various industries.
    • For wire ranging from 14 to 24 gauge
    • Crimpers with durable, steel construction and cushioned grips
    • Color-coded release tools have knurled handles and stainless-steel shafts

    Quick View

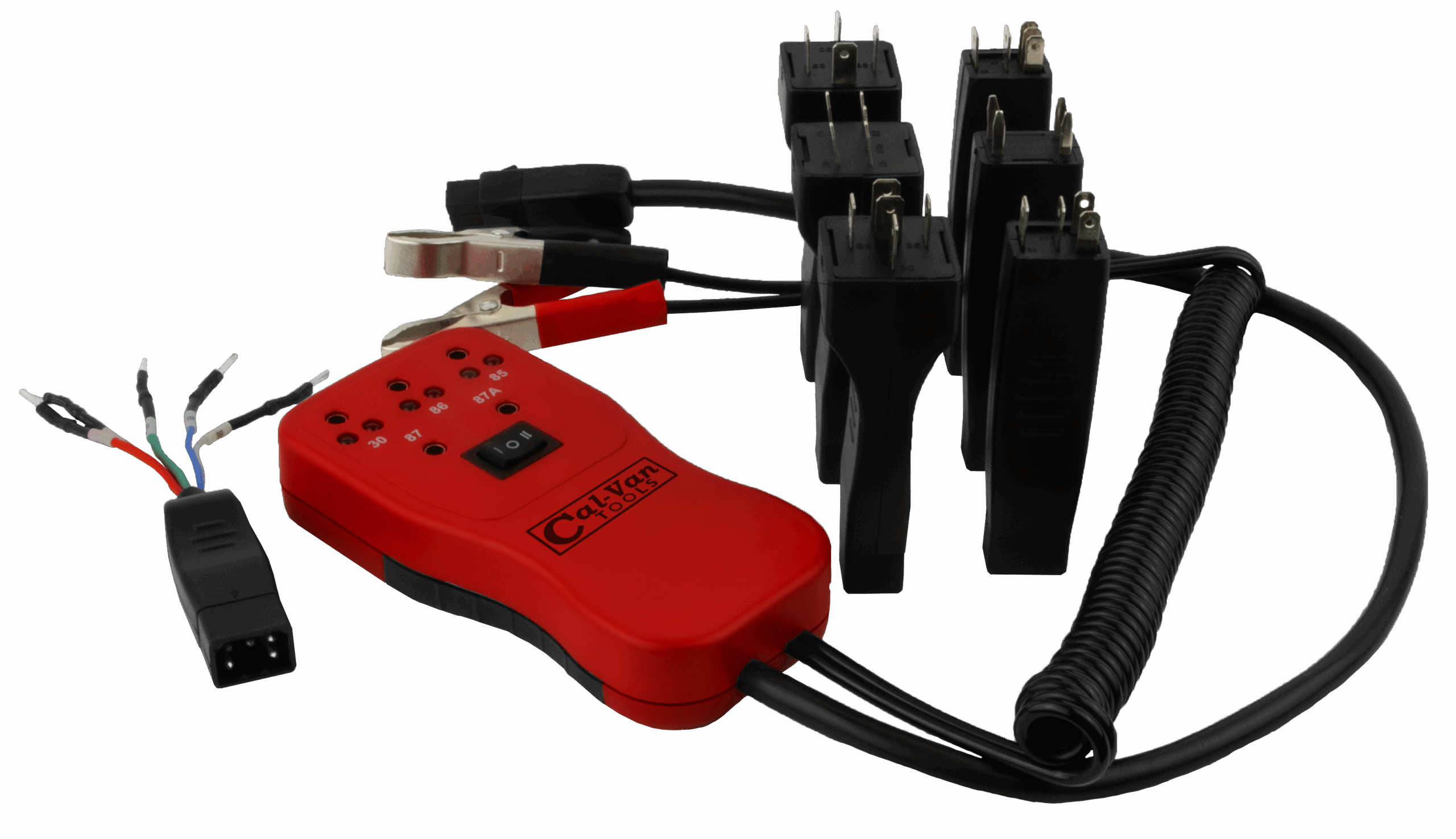

  • Relay Circuit Pro

    $200.74

    Part No: 76

    Relay Circuit Pro

    $200.74

    FEATURES

    • The 76 Relay Circuit Pro is a tool that can test an entire circuit from the battery to the component in question as well as determining if the relay itself is functioning properly. This tool gives the technician the ability to instantly determine the problem within a tested circuit. It will identify at the push of a button if a wire a part or a relay is defective without the use of a multi-meter. If the technician wishes to gain more information about the problem the tool also features easily accessible ports for use with other diagnostic tools. This tester also has other practical uses. Since the item can jump the relay the technician can use it as a remote control starter in engine work like compression testing distributor or cam shaft adjusting or to run the compressor during an A-C charge.
    • Kit includes the tester 6 popular relay leads 1 universal relay lead.
    • Comes in a blow molded case with a high density foam insert.
    • Works with both 12 and 24 volt systems.
    • Patent pending.
    Quick View
  • Amp Hound 2

    $162.28

    Part No: 72

    Amp Hound 2

    $162.28

    FEATURES

    Introducing the Amp Hound 2. The Amp Meter for Fused Circuits!
    CONVENIENT: Attach adapter to fuse or just touch the probes to the top of the fuse.
    AUDIBLE: Tone lets you know when you are touching a fuse. No guesswork, no need to stare at the meter. This makes working in under-the-dash fuse boxes much simpler.
    FUSE TYPES: Works on new fuse types Mini-LP and Micro-Fuse, along with three of the most common automotive fuses types: Mini, Standard and Maxi with all of the most common ranges.
    SAFE: No chance of shorting a circuit while the fuse is removed.

    Real time readings of current and amps in fused circuit without removing fuse.
    Special Fuse Adapters lock on to fuse to give user hands free control.
    Includes all features from original Amp Hound that allows easy component testing and Parasitic Drain location.
    Takes amperage readings without having to access hard to reach components.



    Quick View
  • Deutsch Terminal Service Set, 6 Piece

    $159.99

    Part No: 55100

    Deutsch Terminal Service Set, 6 Piece

    $159.99

    Modern electrical systems have advanced far beyond basic tools and simple connectors. They require unique tools to do the job right. This set is complete with thetools needed when dealing Deutsch terminals, along with other types of open and closed barrel terminals.

    • This set contains the tools needed to crimp and release Deutsch terminals found throughout various industries
    • For use various types of open and closed barrel terminals
    • For wire ranging from 14 to 24 gauge
    • Crimpers with durable,steel construction and cushioned grips
    • Color-coded release tools have knurled handles and stainless-steel shafts

    Quick View
  • AmpHound

    $124.86

    Part No: 74

    AmpHound

    $124.86

    FEATURES

    • Introducing the Amp Hound designed to drastically reduce the amount of time needed to determine the amount of Current in a Fused circuit. The Amp Hound can determine the amount of Current in a Fused circuit without removing the Fuse! Not only will this save the time needed to remove the Fuse configure the tool read the Current and replace the Fuse it will also solve the problem of inadvertently resetting Parasitic Drains.
    • The Amp Hound also makes it possible to very quickly sniff out current in an entire Fuse Block in the matter of seconds! Some of its many uses include finding parasitic drain measuring amp draws on hard to reach fuse boxes quickly identify circuit locations by Amp draw etc.
    • Absolutely the fastest way to measure current!
    • Find current in all ATM ATO and MAXI type fuses most accurate on 5 -50 Amp sizes.
    • Can detect currents as low as 5mA easily find any parasitic drain.
    • Never pull a fuse again to read the current.
    • Audible beep instantly tells you if there is any current in any circuit and provides no-look effortless operation.
    • Great for those under-dash fuse panels.
    • The tool is battery operated with an automatic shut-off.
    • Use standard Test Leads to touch the top of the Fuse.
    • Patent Pending
    Quick View
  • WiFi Borescope

    $89.99

    Part No: 84

    WiFi Borescope

    $89.99

    Feature and benefits:

    • High-resolution, multiple aspect camera (1920×1080, 1280×720, and 640×480) with adjustable LED lighting.
    • Uses an independent WiFi signal (approximate range is 30 ft.), there’s no need to be connected to a computer.
    • Mobile app for both Android (2.3 and up) and IOS (6.0 and up) devices gives users options: image capture, video recording and album storage.
    • Lens and cable are IP67 certified, dustproof and waterproof in up to 3 feet of water for up to 30 minutes. (Transmitter is not rated as such.)
    • Long, bendable cable (58 inch) is flexible yet rigid enough to give users access into hard to view areas.
    • Compact camera is only 6mm in diameter by 35mm in length, allowing user greater access.
    Quick View
  • Ripple Quick Tester

    $72.95

    Part No: 73

    Ripple Quick Tester

    $72.95

    FEATURES

    • The Quick Ripple Tester is designed to easily and efficiently test alternators for a variety of issues including ripple through the DC outlet cigarette lighter.
    • Allows the user to test an alternator for bad diodes bad stators and intermittent diodes or stators without ever lifting the hood.
    • Simply plug the tester into the vehicles DC port and the tester will give results in a series of LED flashes to pinpoint exact problem.
    • Many late model vehicles have access issues when it comes to the engine compartment this tool will greatly decrease the time spent troubleshooting.
    Quick View
  • LCD Test Light

    $65.86

    Part No: 78

    LCD Test Light

    $65.86

    FEATURES

    • 6V 12V 24V
    • For use on 6v 12v 24v DC systems
    • Backlit LCD display
    • Test for voltage on both power and ground in DC circuits
    • Stainless steel probe
    • Coiled cord with reach up to 12ft
    • LCD test light can be used for testing both power and ground voltage on DC circuits.
    • Warning: For use with DC circuits only.
    Quick View
  • AmpAlert

    $46.89

    Part No: 69

    AmpAlert

    $46.89

    FEATURES

    • Instant Parasitic Drain Finder
    • Tool used to detect parasitic Drain without removing a fuse from the fuse box.
    • Simply touch probes to the top of the fuse and tool gives off a distinct audible tone when parasitic drain current is detected.
    • A huge time saver for the technician. Cuts troubleshooting time by up to 90%.
    • Avoid blown multi-meter fuses.
    • Resolution down to 5 milliamps.
    Quick View
  • Logic Light Circuit Tester

    $31.51

    Part No: 81

    Logic Light Circuit Tester

    $31.51

    This self-powered Logic Light removes the guesswork when testing live and non-live 6V, 12V and 24V DC electrical systems. It is simple to use and has patented LED edge-lighting to clearly distinguish power or ground. Use it to test for poor grounding, broken wires, and blown fuses. Creates less draw than traditional test lights with incandescent bulbs, protecting your electrical system while you work.

    •Patented LED edge-lighting illuminates the handle red when power has been detected and green when grounded
    •Internal power source allows user to test live and non-live DC systems (battery included)
    •Save time by easily confirming a grounded circuit

    Applications:
    For use with 6V/12V/24V automotive electrical systems

    Quick View
  • Electrical Back Probe Kit, 17 Piece

    $30.24

    Part No: 611

    Electrical Back Probe Kit, 17 Piece

    $30.24

    • Access electrical circuits from the back side of connectors
    • Extended wires make testing connectors more convenient
    • Access to check for voltage or amperage while connector is plugged in

    Quick View
