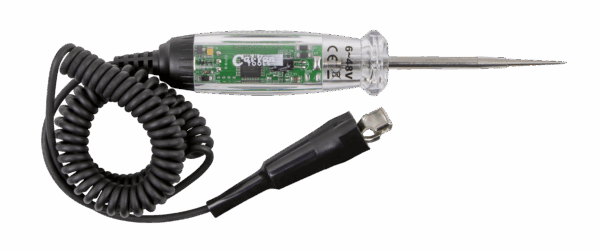

LCD Test Light

The LCD Test Light can be used for testing both power and ground voltage on 6v, 12v, 24v, and 48v DC circuits. Equipped with a coiled cord that can extend up to 12 ft.

• Backlit LCD display, lights red and green depending on test
• Stainless steel probe
• Long reach cord, up to 12ft
• For use on 6v, 12v, 24v, and 48v DC systems.
• Warning: For use with DC circuits only.
• Instructions:
  • Test for Power
    1) Connect lead to a good ground.
    2) Touch probe to circuit terminal or wire.
    3) LCD should light red and will display voltage in circuit.
  • Test for Ground
    1) Connect lead to a good power supply.
    2) Touch probe terminals, wires or chassis to locate ground.
    3) LCD should light green and display voltage at good ground connection.

UPC: 047084000786
Shipping Weight: .5lbs

78 LCD Test Light Flyer
