BEARING CUP INSTALLER

FEATURES

An encased magnet is utilized for installation, retaining the new bearing cup in place over the yoke assembly opposite the forcing screw. Once this assembly is secured, a second bearing cup is positioned for installation by means of the plunger found at the end of the forcing screw. An impact or hand wrench is applied to the forcing screw, securing the first bearing cup in place and allowing installation of the first retaining clip.

• Install two bearing cups in one procedure on virtually all medium and light duty U-joints
• Manufactured from high-grade steel for strength and durability. Simple to use for instant results

Applications:
Light Duty to Medium Duty U joints.

Parts Breakdown:

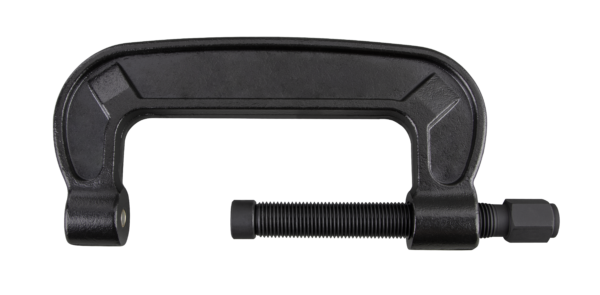

20201 C Frame
20202 Forcing Screw
20203 Flat Press Adapter
20204 O Ring

Dimensions: 11.50″ x 1.85″ x 5.17″
